美国 babbitt LT9000 射频导纳液位变送器




LT 9 0 0 0液位变送器

LT9000是一个连续的液位变送器，其检测具有导电性的液体的罐或其它容器中的水平。 LT9000器件还可以检测一个接口，如油/水的水平。

的基本单元是一个坚实的不锈钢探头，连接到一个防爆外壳。 探头涂有非导电性的材料，如聚苯硫醚，海拉尔或特氟隆。 防爆外壳里面是所有的校准调整和传感电子。

的分离的4-20毫安的输出信号可以驱动一个负载为1000欧姆。 零点和量程可以设置在整个长度上的探头或探头的任何部分。

PDF版资料册 - 这些都是大文件和下载的速度会发生变化。

• 下载免费的Adobe PDF阅读器
• LT9000小册子

应用性能保证

LT9000在购买后60天之内，如果不按照我们的要求执行，并正确地安装在已批准的申请不超过规定的性能规格，可能会返回完整的信贷LT9000。

特点

• 4-20 mA输出
• 完全自足
• 温度稳定的电子产品
• 在董事会保险丝保护
• 完全隔离输出
• 简单的安装和校准
• 模块化电子容易被取代
• 防爆住房标准
• 两年保修

L T 9 0 0 0   Level Transmitter

The LT9000 is a continous level transmitter that detects the level of an electrically conductive liquid in a tank or other vessel. The LT9000 can also sense the level of an interface such as oil/water.

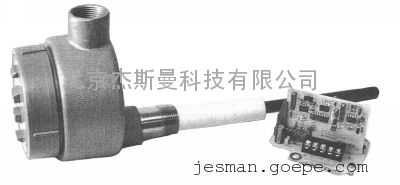

The basic unit is made of a solid stainless steel probe, attached to an explosion proof housing. The probe is coated with a non-conductive material such as Ryton, Halar or Teflon. Inside the explosion proof housing are all calibration adjustments and sensing electronics.

The isolated 4-20 mA output signal can drive a load of up to 1000 ohms. The zero and span can be set over the entire length of the probe or any portion of the probe.

PDF Brochure - These are large files and download speeds vary.

• Download the free Adobe PDF Reader
• LT9000 brochure

Application Performance Guarantee

If within 60 days of purchase, the LT9000 does not perform according to our claims and was properly installed in an approved application that does not exceed the stated performance specifications, the LT9000 may be returned for full credit.

Features

• 4-20 mA output
• Totally self-contained
• Temperature stable electronics
• On Board fuse protection
• Fully isolated output
• Simple installation and calibration
• Modular electronics easily replaced
• Explosion proof housing standard
• Two year warranty
